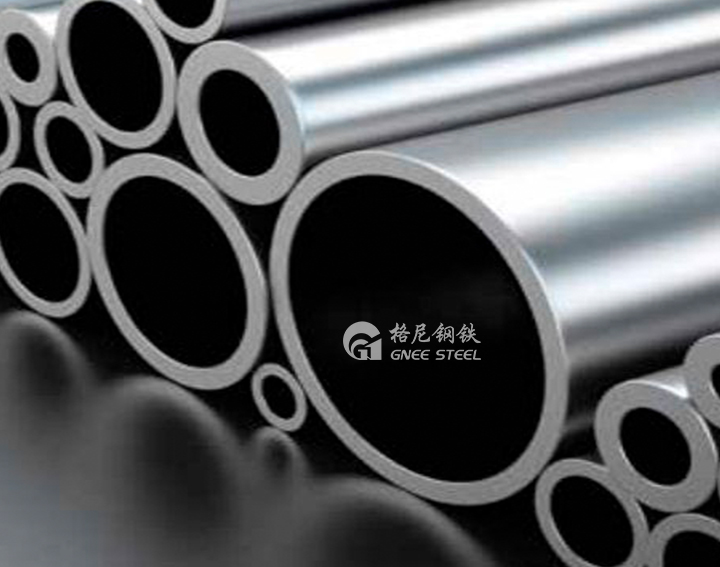

SS400 Steel pipe
Gnee provides JIS G3101 SS400 steel pipe made of first-class technology, which has good performance. Other grades of JIS G3101 steel pipe are ss330 steel pipe, ss490 steel pipe, ss540 steel pipe. We reserve a large amount of inventory and support many transportation and payment methods. Welcome to order.
With excellent performance, SS400 steel pipe is widely used in construction, bridges, machinery manufacturing, automobile manufacturing, oil and gas transmission, etc.
SS400 steel pipe has good machinability and weldability. It can be cut, drilled, welded, and other processes through conventional steel pipe processing technology.
SS400 steel pipes offer a cost-effective solution for structural applications. Their competitive pricing, combined with their favorable mechanical properties, makes them a popular choice for projects.
| Grade | Chemical Composition, % by weight | ||||
| C. max | Si. max | Manganese | P. max | S. max | |
| SS400 | – | – | – | 0.050 | 0.050 |
| Grade | Yield Strength min. (Mpa) | Tensile Strength MPa | Elongation min. % | Impact Resistance min.[J] | |||
| Thickness ＜16 mm | Thickness ≥16mm | Thickness ＜5mm | Thickness 5-16mm | Thickness ≥16mm | |||
| SS400 | 245 | 235 | 400-510 | 21 | 17 | 21 | – |
| TAIWAN – CNS | CHINA – GB | JAPAN – JIS | USA – ASTM | GERMANY – DIN |
| SS400 | Q235A, Q235B, Q235C, Q235D | SS400 | A570 Gr.30, A570 Gr.45, A 36/A283M Gr.D | St37-2, Ust37-2, RSt37-2 |
In addition, our SS400 steel pipe has been successfully exported to more than 60 countries such as Vietnam, Malaysia, Indonesia, Pakistan, UAE, and South Korea, etc. Many regular customers visit our company and factory and make multiple orders.
Gnee can provide the following measurement services for SS400 pipe:
1. Dimensional measurement: Measure the dimensional parameters such as length, width, and thickness by measuring instruments to ensure the pipe is qualified and meets the design requirements.
2. Surface measurement: Measure parameters such as flatness, unevenness, and surface roughness of the SS400 pipe surface to help ensure that the quality and surface state of the pipe meet the requirements.
3. Thickness measurement: Use a thickness measuring instrument to accurately measure the thickness of the SS400 pipe to ensure that it meets the design requirements.
4. Material measurement: Use material analysis instruments to measure the chemical composition and mechanical properties of the product to ensure that the quality and performance meet the requirements.
5. Bending and Deformation Measurements:The degree of bending and deformation of the steel pipe is measured and monitored by using tools such as bending measuring instruments and displacement sensors to ensure that it is within the allowable range.
Gnee can customize the size and shape of steel pipes for your project according to specific project needs. The custom design of the SS400 pipe is carried out by a professional engineer and design team. Based on the requirements and constraints of the project, they will use calculation and simulation tools, combined with experience and technical knowledge, to optimize the steel pipe design to meet the specific needs of your engineering.
● According to the strength requirements of structural design, adjust the thickness, width, and length of SS400 steel pipes.
● The shape of the steel pipe can be designed according to the characteristics of the project.
● If you consider the convenience of installation and maintenance, we can also add openings for easy operation in the design for areas that require frequent maintenance.
Purchasing Gnee SS400 steel pipe can provide the following deep processing services. We can customize according to the specific needs of customers to meet the requirements.
Cutting service: SS400 steel pipe can be custom cut to obtain the desired shape and size according to the needs of customers. For example, flame cutting, plasma cutting, laser cutting, etc., can cut steel pipes into required blocks, special-shaped parts.
Bending and forming: SS400 steel pipes are bent and formed by stress application and appropriate processes to obtain the desired shape.
Welding service: SS400 pipe can be subjected to various types of welding services, including manual arc welding, gas-shielded welding, laser welding, etc.
Turning and machining of holes: Turning and machining of holes in SS400 steel pipes by using machining equipment. These processes produce smooth surfaces, precise holes and threads to meet specific assembly requirements.
Surface treatment: In order to improve the corrosion resistance and aesthetics of the steel pipe, surface treatment can be carried out. This includes methods such as spraying, hot-dip galvanizing, electroplating, etc. to add a protective layer and provide corrosion resistance.
Gnee SS400 pipe can provide the following testing services through third-party testing agencies. These third-party testing services can provide independent, objective verification that SS400 pipes comply with relevant standards and regulations.
Material chemical composition analysis: Through chemical composition analysis, determine whether the composition of the steel pipe meets the standard requirements.
Mechanical performance test: Mechanical performance test includes tensile test, impact test, bending test, etc., which determine whether the mechanical properties such as strength, toughness, and ductility of products meet the specified requirements.
Metallographic testing: Through metallographic testing, check the structure, grain size, non-metallic inclusions, etc. of SS400 steel pipes to evaluate their quality and performance.
Corrosion performance test: Through the corrosion performance test, evaluate the corrosion resistance of SS400 pipes, including salt spray corrosion resistance, chemical corrosion resistance, etc.
Hardness test: Hardness test is used to measure the hardness of SS400 steel pipe, and its strength and wear resistance can be evaluated according to the hardness value.
Ultrasonic flaw detection: Ultrasonic flaw detection is used to detect internal defects of pipes, such as cracks, pores, inclusions, etc.
